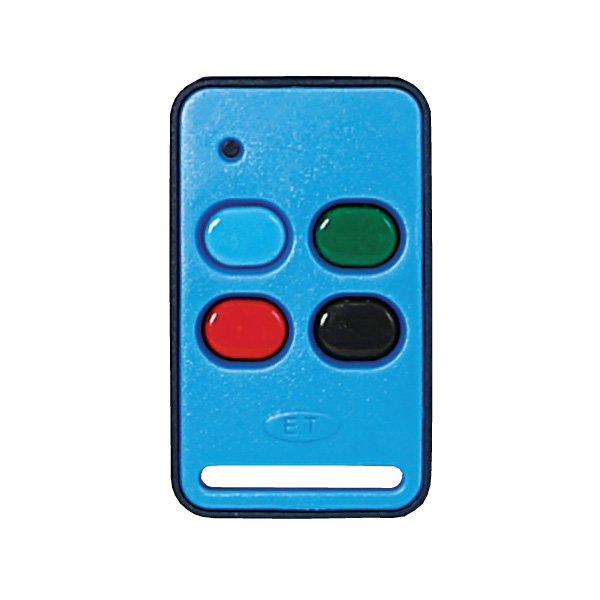

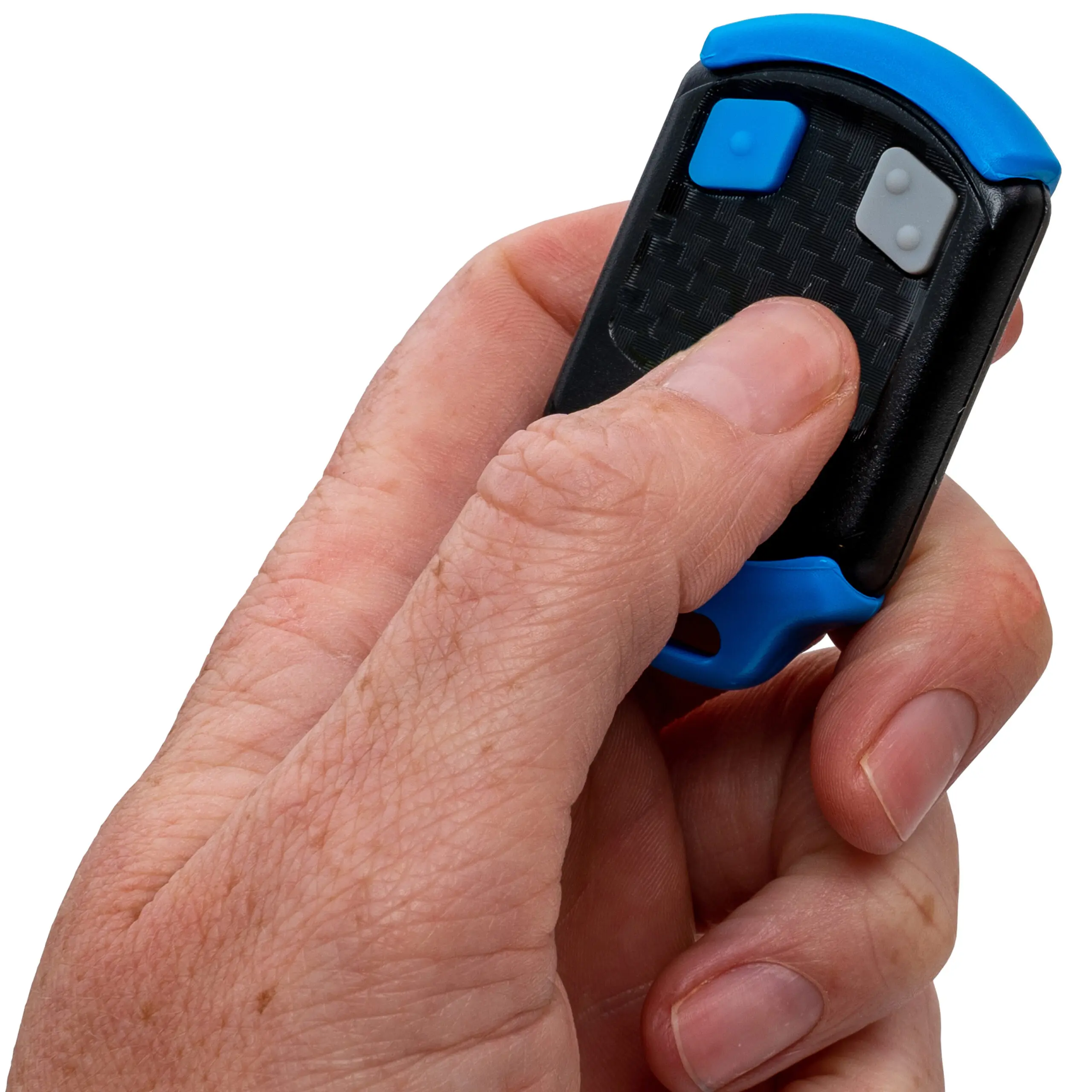

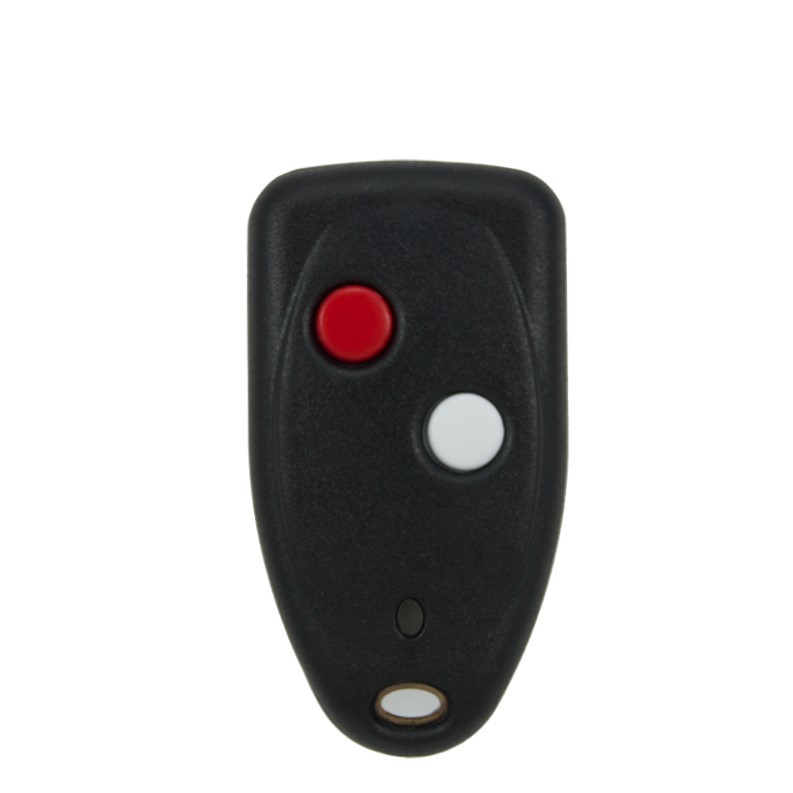

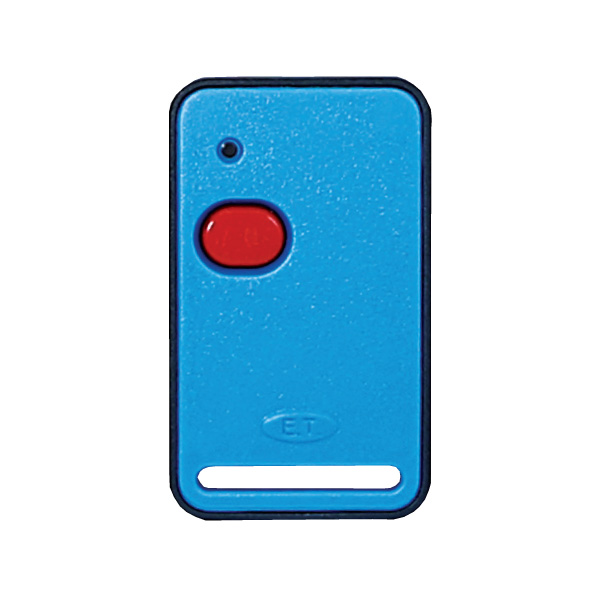

Code hopping remote transmitters are a type of wireless transmitter commonly used in security systems such as garage door openers, car alarms, and keyless entry systems. They employ a technique called “code hopping” to enhance security and prevent unauthorized access.
Here’s how remote transmitters work:
1. **Fixed Code Transmitters**: Traditional remote controls used fixed codes, meaning they transmitted the same signal every time the button was pressed. This made them vulnerable to code grabbing or replay attacks, where an attacker could record the signal and replay it to gain unauthorized access.
2. **Code Hopping Technique**: Code hopping transmitters, on the other hand, use a more sophisticated approach. Instead of transmitting the same code repeatedly, they use a pseudo-random algorithm to generate a sequence of codes. Each time the button is pressed, the transmitter sends a different code from the sequence. This hopping pattern is determined by an algorithm shared between the transmitter and the receiver.
3. **Synchronization**: Both the transmitter and the receiver must remain synchronized in terms of the code sequence. Typically, the transmitter and receiver initially synchronize their code sequences using a secure method, such as a cryptographic key exchange during programming or initialization.
4. **Security**: The pseudo-random nature of the code sequence makes it extremely difficult for an attacker to predict or intercept the next code in the sequence. Even if an attacker manages to intercept one code, it will not be useful for gaining access in the future, as the next code in the sequence will be different.
5. **Rolling Code**: Another term often used for code hopping is “rolling code.” This refers to the fact that the transmitted code “rolls” or changes with each use, making it virtually impossible for an attacker to duplicate the code sequence.
Overall, code hopping transmitters provide a higher level of security compared to traditional fixed code systems, making them a popular choice for applications where security is paramount.
